Testing & Certification

XlHARl was founded in 1958, which has a long history of more than 60 years. As an indepent third-party laboratory, XlHARl is able to provide testing and inspection services for AC and DC electrical equipment rated voltage up to 1100kV, including circuit breakers, switchgear,  GlS, transformers, instrument transformers, surge arresters, insulators, reactors, capacitors GCB, disconnectors, earthing switches, fuses, converter valves, renewable industry equipment, etc.

- China Quality Inspection & Testing Center for HV Apparatus

- China Quality Inspection & Testing Center for Transformer (CTQC/STRI)

- China Quality Inspection & Testing Center for Insulator & Surge Arrester

- China Quality Inspection & Testing Center Power Capacitor

- China Quality Inspection & Testing Center for Smart Electrical Equipment

- China Quality Inspection & Testing Center for HV Apparatus Products (Henan)

- National Type Evaluation Laboratory for Instrument Transformer

- Testing laboratory: Xi’an High Voltage Apparatus Research Institute Co., Ltd.

- Calibration laboratory: Mechanical Industry Fifth (Xi’an) Measurement Test Center

- Statutory Metrological Verification Institution Xi’an High Voltage Apparatus Research Institute Co., Ltd. Mechanical Industry Fifth (Xi’an) Measurement Test Center

- Mechanical Industry Fifth (Xi’an) Measurement Test Center

- IECEE Certification Authorization CB Test Laboratory(IECEE CBTL)

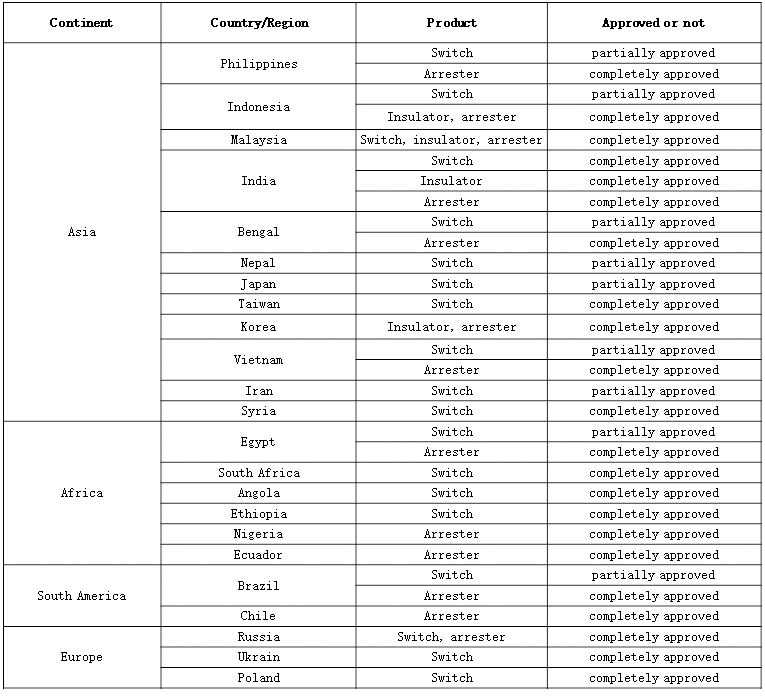

XIHARI test reports are widely used in more than 30 countries including China, Saudi Arabia, UAE, Egypt, Indonesia, Thailand, Vietnam, India, Malaysia, Turkey, Russia, Italy, Poland, Korea, Japan, Brazil, Chile etc.

Test Capability

- DIRECT TEST：THREE PHASE 14kV /200kA 40.5kV /50kA

- SYNTHETIC TEST：SINGLE PHASE 1100kV /120kA THREE PHASE 363kV/63kA

- SHORT TIME WITHSTAND CURRENT PEAK600kA； RMS200kA/2s

- OPERATION TEST FOR HVDC THYRISTOR VALVE ±1100kV 7000A

- SHORT CIRCUIT CURRENT FOR TRANSFORMER 500kV/310MVA

Test Facilities

- Short-circuit Generators——15kV/6500MVA×2；12kV/2500MVA×2； 12kV/500MVA×1

- Short-circuit Transformers——12kV/252kV，780MVA×3，720MVA×3；14kV/4*21kV，1500MVA×6

- Synthetic Circuit——1000kV × 2/ 7.5MJ；840kV/ 6.73MJ

- Test Bay — 8 in total. 3 of them can be used for synthetic test with rated voltage 1100kV and below

Measurement System

- Three sets of Data Acquisition/Transient Recorder.

- The configurations and performance parameters of each set :

24 acquisition channels with the maximum sampling rate of 1 MS/s；

24 transmission systems isolated by fiber-optic with bandwidth 20MHz(-3dB)；

8 high speed fiber-optic isolated digitizers with maximum sampling rate of 100 MS/s and bandwidth 25MHz(-3dB).

Test Capability

- AC: 1100kV DC: ±1100kV INSULATING TEST

- HIGH & LOW TEMPERATURE : UP TO 800kV EQUIPMENT

- ARTIFICIAL POLLUTION, HIGH ALTITUDE (6000m) DAMP & HEAT, ICING TESTS UP TO 550kV(AC), ±500kV(DC).

- OUTSIDE LONG TERM TEST WITH VOLTAGE UP TO 252kV

Test Facilities

- 2250kV/1A power frequency testing transformer

- 4800kV/480kJ impulse voltage generator

- 1200kV/50mA DC voltage generator

- 1200kV/60pF standard capacitor

- 800kV/2A power frequency testing transformer

- 550kV/4A power frequency testing transformer

- 2400kV/240kJ impulse voltage generator

- UHV Test Lab Dimension：78×48×48m

Test Capability and Test Facilities

±1100kV/7000A

This test system is composed of new energy power electronics device test system, medium and high voltage products test system for flexible AC transmission line, low voltage power quality test system, and low voltage frequency converter test system. The tests can be performed as below:

- Photovoltaic inverter electrical performance test, up to1140V 1MW

- SVC, SVG electrical performance test, up to 35kV 20Mvar

- Low voltage SVC, SVG and power source products (UPS, DC power source) electrical performance test, up to 1140V 2MW

- Frequency converter products performance test, up to 1140V 500kW

Test Capability and Test Facilities

- Temperature Rise：27000A 50Hz； 8000A 60Hz

- Verification of degree of protection：IP67

- Thermal Mechanical Test for Insulator : -80℃~+100℃ （Bending): 50kN(2m x 2m x 4m) （Tensile): 500kN(2.06m x 0.71m x 3m)

- Bending and Torque Test: (Torque): 100kN · m (Bending):1200kN · m (Compression): 2000kN

Test Capability

- SC M&B ：VOLTAGE ：110V·1254V , CURRENT ：200kA/420V

- ST CW ：VOLTAGE ：230V·400V , CURRENT ：280kA/4s

- LOAD EST ：VOLTAGE ：110V·1200V , CURRENT ：10kA

- CHAR.TEST ：VOLTAGE ：45V , CURRENT ：80kA

- TEM. RISE ：VOLTAGE ：45V ：URRENT ：40kA

REMARK：ALL TESTS SPECIFIED BY STANDARD

- 90MVA AC Impulse Transformer, 2 sets

- 37MVA and 10MVA AC Impulse Transformer, 1 set for each

- 1600kVA Multipath magnetic circuit transformer, 1 set

- 240kVA and 63kVA Multipath magnetic circuit transformer,1 set for each

- 960kVA high current producer, 1

- 95MVA DC Impulse Transformer, 1 set

- Thermal performance and electrical performance test equipment, environmental test equipment, measurement control desk and etc

XIHARI is the only comprehensive testing and metrological verification institute in China, which specializes in high voltage/low voltage, AC/DC electrical equipment testing and instrument calibration and verification. Scope of metrological verification authorized by Shaanxi Bureau of Quality and Technical Supervision: 9 categories of products; Scope of calibration authorized by CNAS: 44 categories of instruments; Scope of testing authorized by CANS: 93 categories of electrical products , related to 653 international standards or national standards.

XIHARI have been working in the electrical equipment verification and calibration for several decades and establish the quality management system in accordance with IEC/ISO 17025 guide. With perfect facilities and rich experience on verification and calibration, the best service will be provided for customers.

Metrological verification and calibration capabilities :

- 1000kV voltage transformer, current transformer, electronic voltage transformer, electronic current transformer

- HV AC verification and calibration capability: Max. voltage: 1000kV、current: 100kA

- HV DC verification and calibration capability: Max. voltage 1200kV、current: 6kA

- Impulse voltage current verification and calibration capability: Max. voltage 4800kV、current : 200kA

- Transformer calibrator system

- Smart electrical equipment calibration

- EMC equipment calibration
